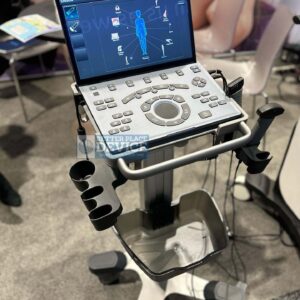

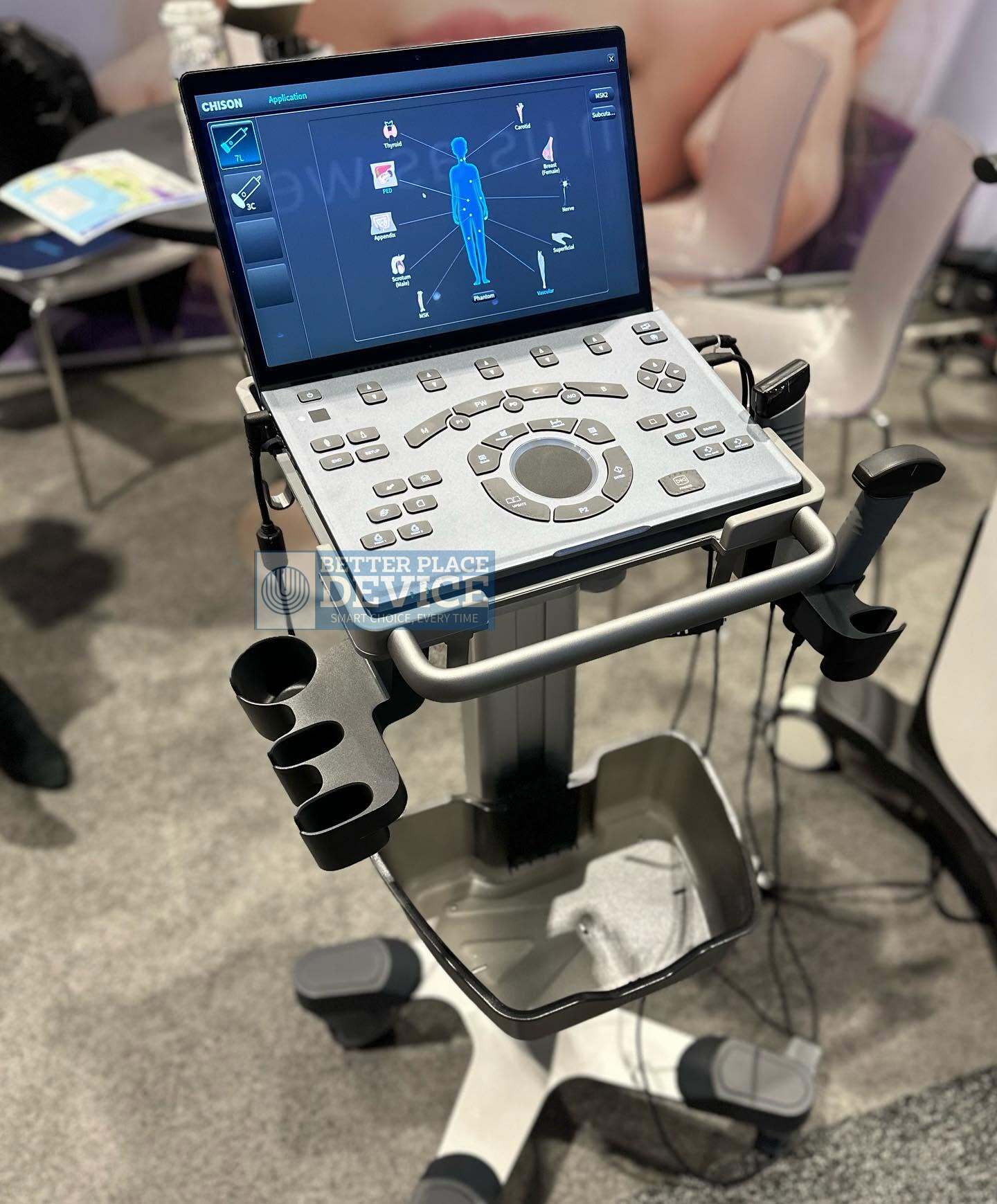

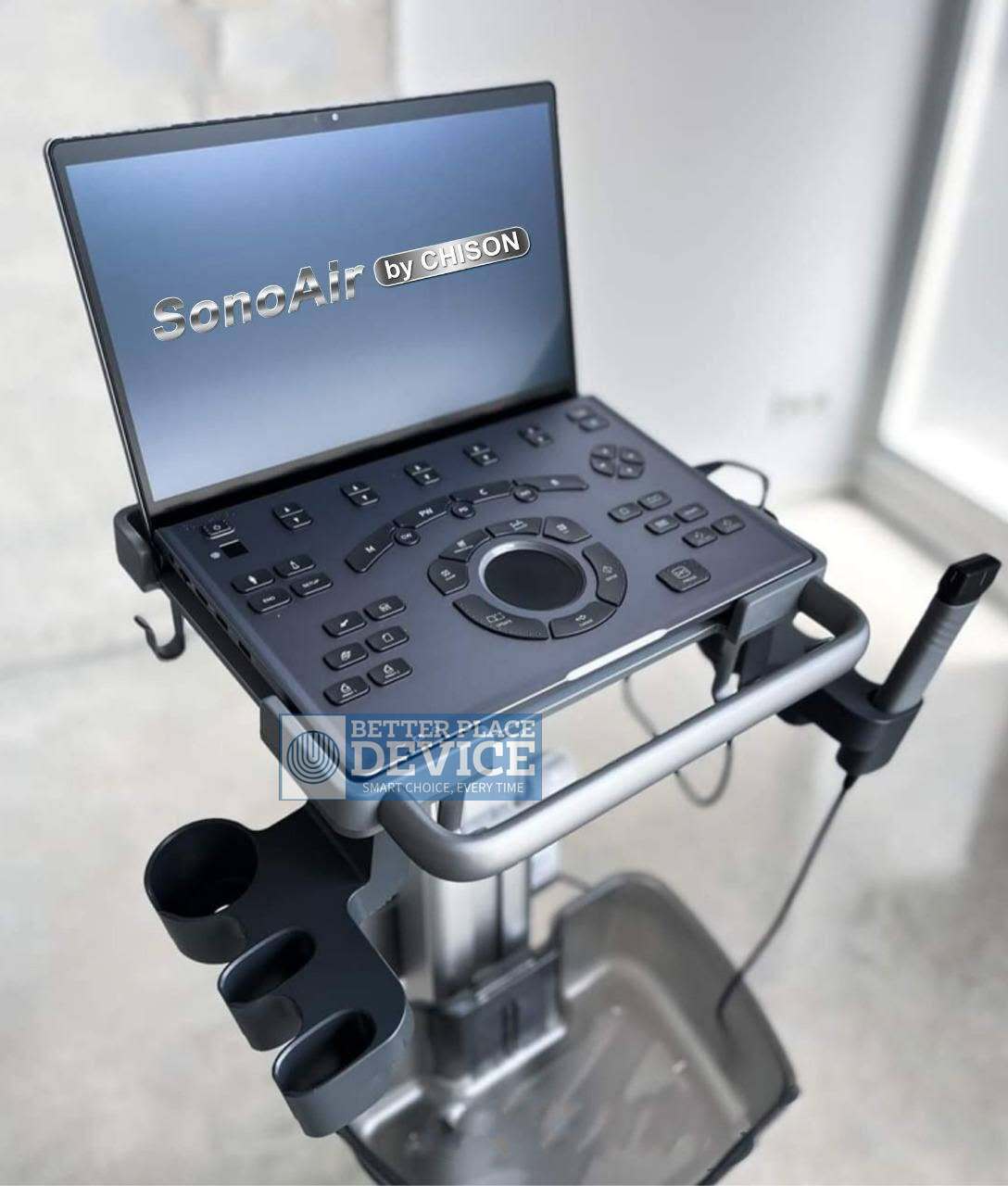

Chison SonoAir 70 Portable Ultrasound

Chison SonoAir 70 Portable Ultrasound

Chison SonoAir 70 Portable Ultrasound is the world’s lightest and thinnest laptop ultrasound—only 1/3 the weight and thickness of traditional portables. With 4 probe connectors, it effortlessly transforms in various clinical applications. Elevating user experience with touchscreen, touchpad, Touch ID, and intelligent functions. Redefining point-of-care exams with high-definition imaging and smart tools, it’s the most innovative solution for physicians in dynamic environments.

Features

Main Unit with 14.1″ High Resolution LED Monitor
4 probe connectors
B, 2B, 4B, B/M, CFM, PW, PD/DPD, instant Duplex, B/BC,Triplex Mode, Quadplex Mode, Trapezoidal, Curved Expanding, Chroma B&M&PW
Full-Screen Mode
Auto IMT
2D Steer
SonoZoom
Automatic PW trace and measurement
Super Image module: Multiple Compound Imaging, SRA (Speckle Reduction Algorithm), FHI, X-contrast,AIO
Q-Image
Measurement & calculation software packages: General, OB&GYN, LE vein, LE Artery, Cardiac,Abdomen, Vascular,Urology, Small Parts, MSK, Pediatrics, TCD
Super Needle
Cable Holder

Specifications

Latest AIR platform
2.1 kg Ultra-light weight(with battery)
26 mm Thickness
Spacious inch responsive touchscreen
Easy connect with 4 ports
180+mins for sanning & 36h+ for stand by
Touch ID
Fast and reliable after-sales service

Light weight
1. Dimensions of main unit (approx.): 322mm（Length）× 217mm（Width）× 26mm（Height)
2. Net weight of main unit (approx.): 2.1kg (no probe included)

Probe Connectors
Probe Connectors * 4 (With a dedicated trolly, it is a Hybrid of Portable and Cart-based Ultrasound)

Material
Built with Aluminum metal material and easy to clean.

Triple-Touch
1. 14.1 inch Touch Screen: High resolution 14.1 Inch LCD display; Resolution: 1920 x 1080；Angle adjustable range: 0-135°
2. Touch pad
3. Touch ID: Finger print

Ultra-Green
Battery: 180+ mins for sanning & 36h+ for stand by Fast response: Instant 3s Wake-Up from Standby Mode

Display Modes
B Mode, B/M Mode, M Mode, 2B Mode, 4B Mode, 2D Steer, CFM Mode, CPA Mode, DPD Mode, PW Mode, B/BC Mode, Triplex Mode, Quadplex Mode, Trapezoidal Mode, Super Needle

Applications
Abdominal, Cardiac, Thyroid, Breast, Vascular, Carotid, MSK, Nerve, Superficial, Pediatric, OB/GYN, Urology, TCD, Scrotum, Renal, Lung, Lumbar, Prostate, UT&Ovary

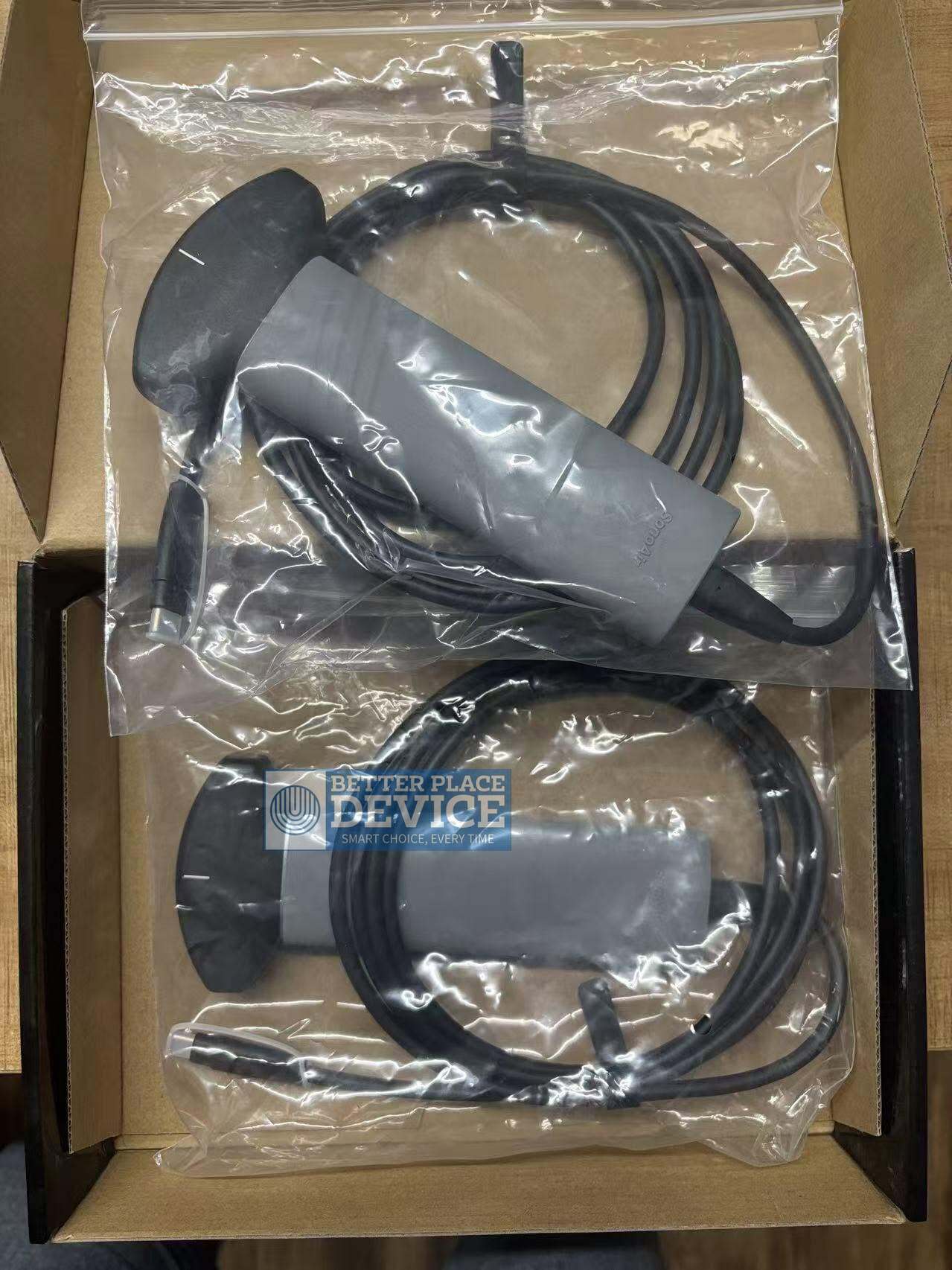

Transducer Types
1. Convex transducer
2. Linear transducer
3. Transvaginal transducer
4. Phased array transducer
5. Micro-convex transducer
